Mühle Hunziken, Live Music Club since 1976

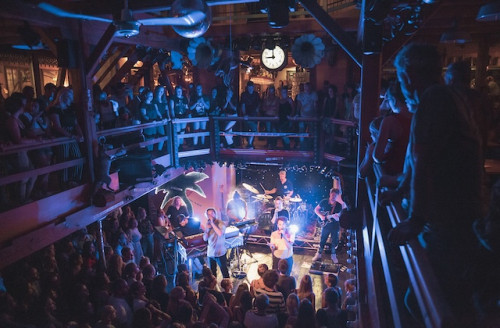

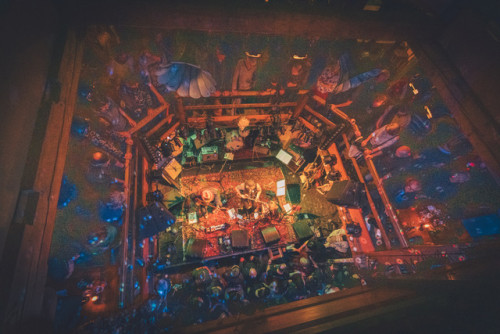

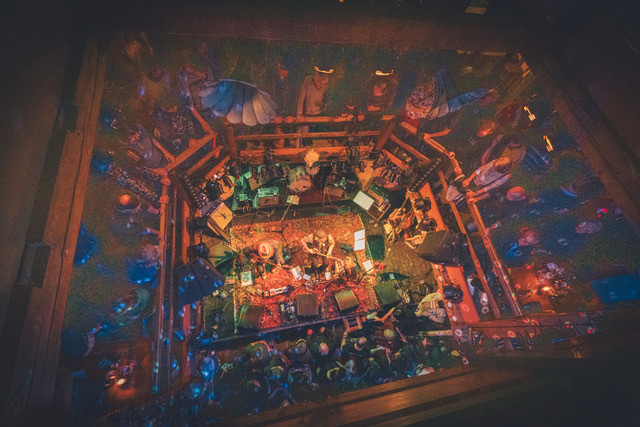

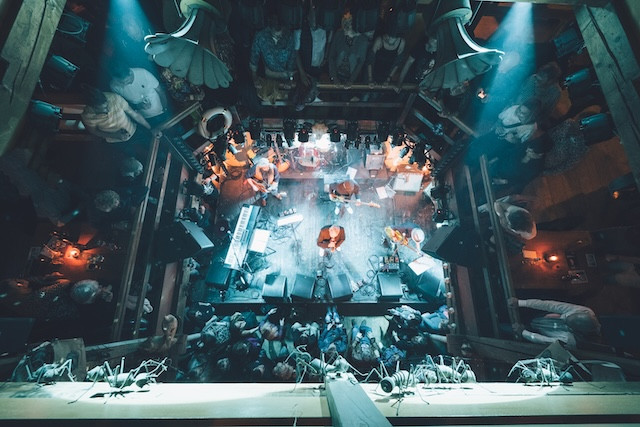

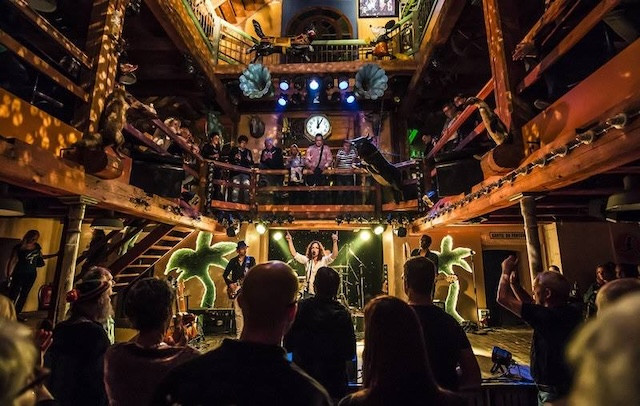

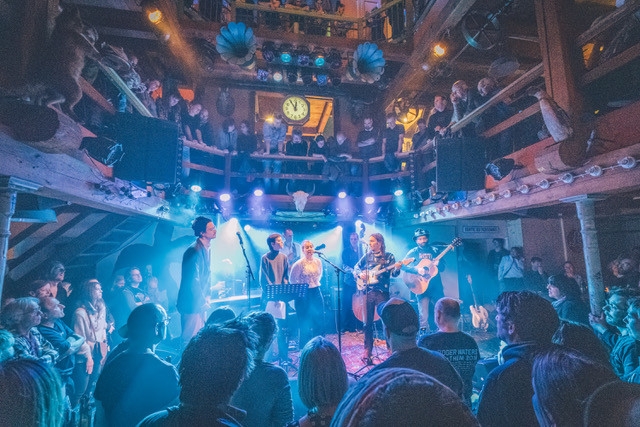

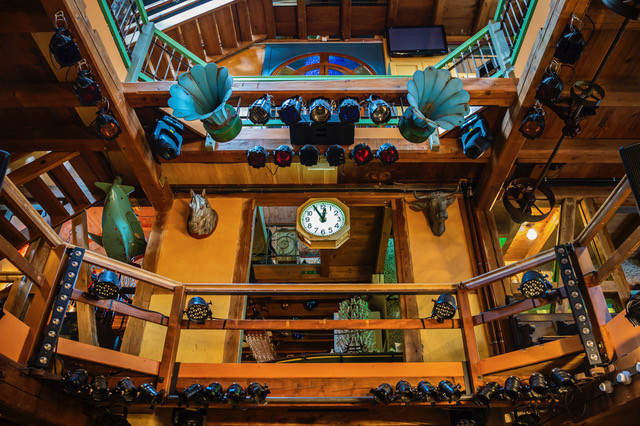

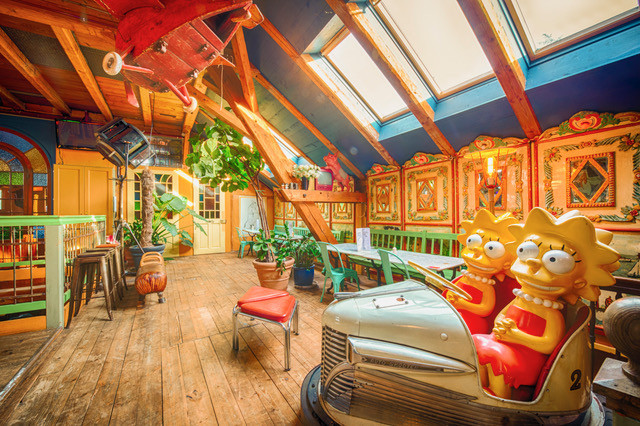

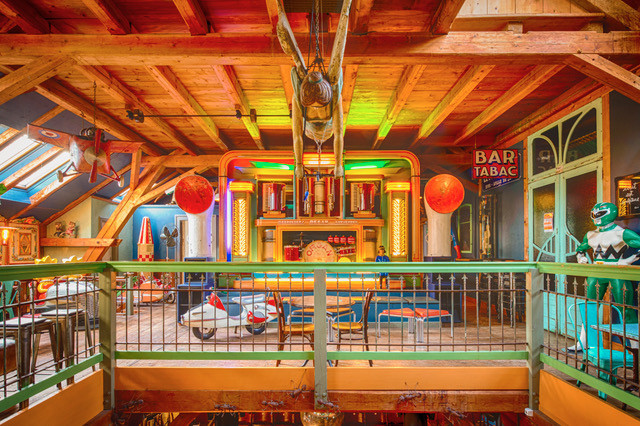

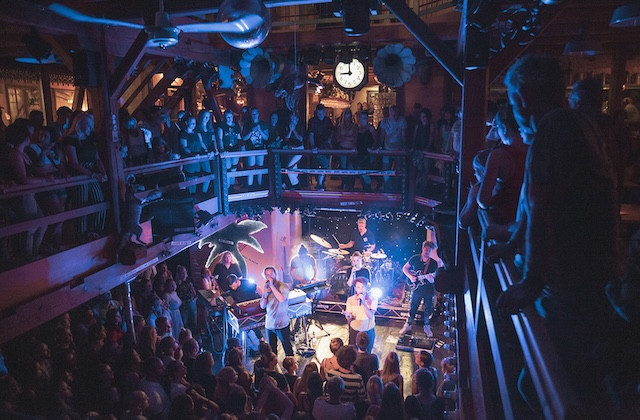

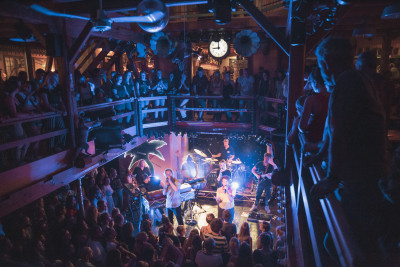

Mühle Hunziken is a truly iconic venue, featuring a unique atmosphere with crowds spread across three different floors – including above and behind the artist – as well as thousands of whimsical items to discover.
Explore the entire venue on our digital tour!
Directions
Address
Load-in & Load-out
There is a large parking lot in front of the venue. For load-in and load-out, you can drive directly up to the main entrance (not possible with trucks). During the show, please park your vehicle in the parking lot (no charges apply).
Nightliner Parking & Shore Power
Please let us know if you are travelling by nightliner and what time yu are planning on arriving. We will secure parking and prepare shore power accordingly. Download graphic
Tech
Technical Advancing
Cédric Faigaux
tech@muehlehunziken.ch
tech@muehlehunziken.ch
Audio
DB-Limits
100dB(A) leQ measured over 60 minutes at the loudest spot in the audience.
Front of House
| Mainfloor | 4x CODA Audio APS Arrayable Point Source | 2x10" +9" DDP Driver |
| 4x CODA Audio SCV-F Subwoofer | 1x18” | |
| Outfills | 2x CODA Audio APS Arrayable Point Source | 2x10" +9" DDP Driver |
| 2x CODA Audio HOPS8 Point Source | 1x8"/1.75" Coax + 1x 8" Driver | |
| Delays | 4x CODA Audio HOPS5 Point Source | 1x5"/1.75" Coax + 1x 5" Driver |
| Upper Floor | 4x JBL AC – Series, AC16 | 1x1" / 1x6,5" Driver |
| 2 x Audio Performance Active | ||
| Amping | CODA Audio Linus 14 | Main / Sub |
| CODA Audio Linus 10C | Delay / Monitoring |
Monitoring
| Wedges | 8x CODA Audio CUE Four | 1x8"/1.4" Coax + 1x 8” Driver |
| 4x QSC K10.2 Active Speaker | 1x10" / 1x2" | |
| Drumfills | KS MK2 Session CB 118 / CM215 | 1x18" / 1x15" / 1x2" |
Lines
| Main Multicore | 40ch Input / 8ch Return analog | |
| 2x Cat5e | ||
| Return | 8ch XLR Return | |
| Splitter | 40ch / 8ch | FOH / Mon and ISO Out LK 150 |
| Sub Stagebox | 2 x 16 / 4 Stagebox with XLR Fan out | |
| 1 x 8ch Stagebox with XLR Fan out | ||
| Monitor Fan out | 40ch Fan out 6m with LK150 |
HF
| HF microphones | 1 x Shure UA 844 Antenna Combiner | |
| 4 x Shure QLXD4 Receiver | ||
| 4 x Shure SM 58 HF TX | ||
| 2 x Shure Body Pack | ||
| 2 x DPA 4088 Headset |
Microphones
| Dynamic | 1 x AKG D112 | |
| 1 x Sennheiser e902 | ||
| 5 x Sennheiser e604 | ||
| 3 x Sennheiser e906 | ||
| 1 x Sennheiser MD421 | ||
| 2 x LP 1009 Condensor | ||
| 3 x Shure SM 58 Beta | ||
| 6 x Shure SM 58 | ||
| 6 x Shure SM 57 | ||
| 1 x Shure SM Beta 52A | ||
| 1 x EV 408 | ||
| 2 x EV 757 | ||
| Condenser | 2 x Austrian Audio OC16 | |
| 1 x Sennheiser e901 | ||
| 2 x Rode NT3 | ||
| 3 x Shure KSM 137 | ||
| 1 x Behringer BA 19a | ||
| D.I. | 3 x BSS AR 133 Active DI Box | |
| 4x Radial PRO48 Active DI Box | ||
| 3 x Behringer Active DI Box | ||
| 4 x Atellier der Tonkunst DI Box HR | ||
| 3 x Palmer Stereo Trafo Box | ||
| Stands | 10 x Boom Stand gross | |
| 6 x Boom Stand klein | ||
| 5 x Roundbase |
Power
| Converter | 1 x Trafo 220V – 110V | |
| Adapter | Typ J(Swiss) -> Typ F, (Schuko), Typ G (England), Typ A (America) | |
| Guest Power | 1 x CEE16 3P+N+E (RED) 400V behind the stage |
Backline
| Drumkit | Sonor Lite, White | |
| Bassdrum 22'' | ||
| Snaredrum 14" x 6" | ||
| Racktom 10", 12", 13" | ||
| Floortom 14" , 16" | ||
| Cimbales | Paiste 2002: 22" Ride / 18" Crash / 17" Crash | |
| 13" Crash / 14" Sound Edge Hi Hat | ||
| Paiste 2000: 18" Thin Crash / 16" Mellow China | ||
| 14" Heavy Hi hat | ||
| Paiste Formula 602: 20" Medium Ride / 11" Splash | ||
| Paiste 404: 18" Medium Crash | ||
| Paiste 3000: 20" China Type | ||
| Drumhardware | Tama Iron Cobra Fussmaschiene | |
| Tama Iron Cobra 600 Doppelfussmaschiene | ||
| Hi Hat, Snarestand, Cimbalesstand by Sonor | ||
| Amps | Eich T1000 Bass Amp | |
| Eich 6 x 10" Bass Cabinet | ||
| Fender Twin Rev. II | ||
| Fender Blues Deluxe | ||
| Roland JC 120 | ||
| Pianos | Fender Rhodes MK II | |
| Clavia Nordstage 4/88 | ||
| Yamaha Moitive ES7 | ||
| Acoustic Grand Piano (per order) | ||
| Key Stand | 2 x X - Frame Key Stand | |
| 1 x Table Key Stand with extention | ||
| 2 x Keyboard Bench | ||
| Percussion | 2 x LP Congas | |
| 2 x LP Timbales with Stand | ||
| 1 x Sonor Bongo with Stand | ||
| DJ Material | 2 x Pioneer CDJ-2000 nexus | |
| 1 x Pioneer DJM-800 | ||
| 1 x Pioneer DJM-A9 | ||
| 2 x Techniks MK3 |
Lights
Fixtures installed
| Front | 6 Dimmer Channels Front |
| 5x ProLights EclProfile CT+ | |
| 2x Martin Era 300 Profile | |
| 4x Clay Paky Mini-B WW | |
| Backlight Wash | 8x Clay Paky Mini-B |
| Varytec Typhoon True Kid 720Z | |
| Backlight Spot | 6x JB Lightning P9 Beamspot |
| Flood | 4x Luxibel B Blinded |
| 2x OXO Sunstrip | |
| FX | 1x MDG Atme with separate fan |
Fixtures mobile
| Floor Set | 2x OXO Sunstrips |
| 6x OXO Colorbeam 14 FCW |
Light Patch
- Download light patch here:
- Download
FoH
| 1x Chamsys MagicQ 250 Stadium Connect (On PC) | |
| 1x Chamsys Extra Wing |
System
| Node | 1x Swisson Node |
| Splitter | 4x Swisson 4Port Splitter |
| 1x Cameo 8Port Splitter | |
| Lines | 2x CAT6 Stage Left - FOH |
Network
| NODE | sACN | 192.168.0.131 | Subnet: 255.255.255.0 |
| LOCAL DESK | sACN | 192.168.0.21 | Subnet: 255.255.255.0 |
| GUEST | sACN | 192.168.0.51 | Subnet: 255.255.255.0 |
Power
| Guest-power | 1x CEE16 3P+N+E (RED) 400V Upstage Left |
| 1x CEE 32 3P+N+E (RED) 400V behind the stage |
Hospitality
General Advancing
Ilona Falk | Lea Born | Corinne Zehnder
booking@muehlehunziken.ch
booking@muehlehunziken.ch
WLAN
Name: Mühle Hunziken
Password: backstage
Password: backstage
Facilities
Backstage: 2 rooms (1 small, 1 big)
Shower: 2
Laundry & dryer: yes
Shower: 2
Laundry & dryer: yes
Guest List
Can be sent in advance or handed over on show day.
Catering
We have a fabulous in-house catering with regional and fresh products and try to reduce food waste. We try our best to make your wishes come true - sometimes we opt for a at least same-quality regional substitute. In addition to the generous catering provided for the travel party upon arrival (see pictures below), our chef will be happy to prepare a delicious in-house dinner for all of you. Please let us know the size of your travel party and their dietary habits (omnivore, vegetarian, vegan, allergies), thank you!
